High voltage cable | fhlr2gcb2g | 25mm²

3 year warranty

Increased flexibility

-40°C to +180°C

Flame retardant

Quantity

Length 10 Meter 25 Meter 50 Meter 100 Meter

£133.00 GBP

~~£132.00 GBP~~ £133.00 GBP

Sale Sold out

Taxes included.

Shipping included

Delivery within 1-3 days

100 days hassle free return

View full details

Safety standards
ISO 19642-9, ISO 19642-5, ISO 6722-1,
EN 13602
IEC 60754-1 halogen free

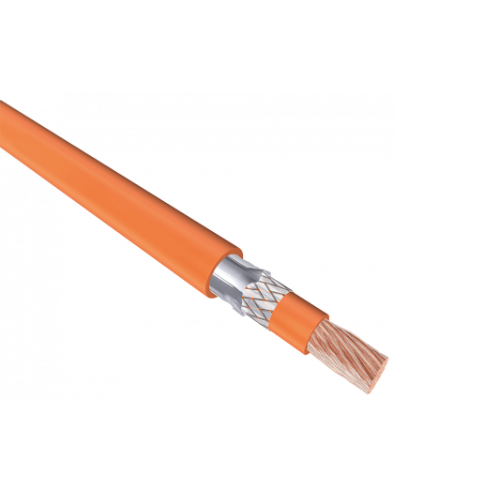

For use in hybrid and electrical vehicles1. Flexible bare copper core according to ISO 6722-1, ISO 19642-5 and EN 13602
2. Silicone internal sheath
3. Tinned copper braid
4. Aluminium / PET tape
5. External silicone sheath

Specifications

1* 25mm²

Quadrature

8.8mm

Diameter

-0.6mm

Diameter Tolerance (mm)

-0.6mm

Conductor Diameter Tolerance (mm)

0.743mΩ/m

Conductor

4.4mΩ/m

Screen

345 g/m

Approx. Weight

-40°C ~ +180°C

Allowed working temperature

What customers say about Voldt

High voltage cable | fhlr2gcb2g | 25mm²

The FHLR2GCB2G 25 mm² high voltage cable is designed for safe and efficient operation in electric and hybrid vehicles. This cable can handle voltages up to 1500 VDC and offers exceptional performance even in demanding conditions with temperatures from -40°C to +180°C. Thanks to its robust silicone insulation and copper core, the cable is resistant to chemicals and mechanical stress, increasing durability.
With a sectional area of 25 mm² and an insulation thickness of 0.52 mm, the cable offers excellent electrical conductivity (resistance: 0.743 Ω/km). Its flexible structure facilitates installation in vehicles where space is at a premium, without compromising reliability or safety.
Recharge your way

Extreme flexibility
The **FHLR2GCB2G 25 mm² high voltage cable** offers an unprecedented degree of flexibility, essential for applications where tight bends and limited space are a factor. Thanks to its finely branched copper conductors and special silicone outer jacket, this cable is easy to install, even in the most complex vehicle systems. The cable maintains its ductility, even at extreme temperatures, and delivers reliable performance without compromising structural integrity. This makes it perfect for demanding conditions within electric vehicles.
