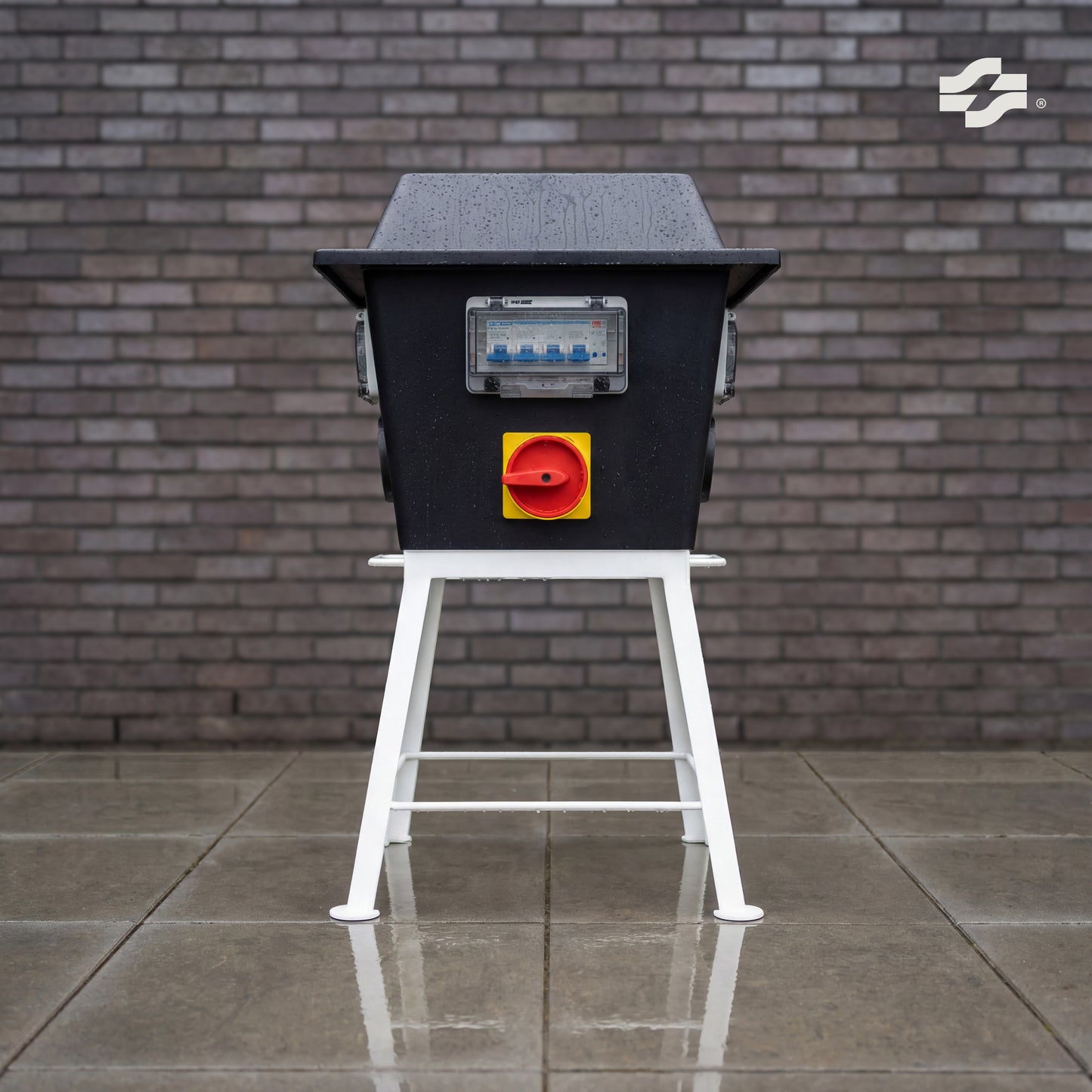

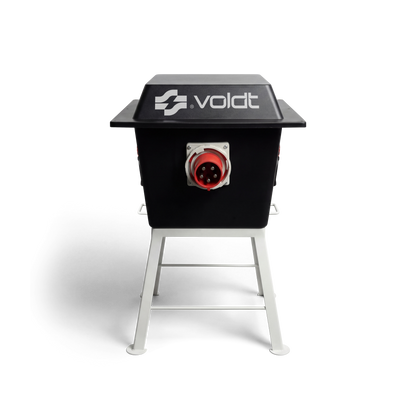

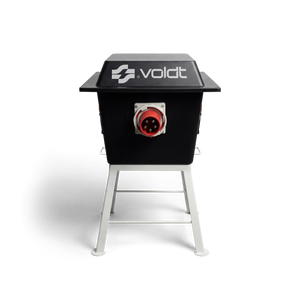

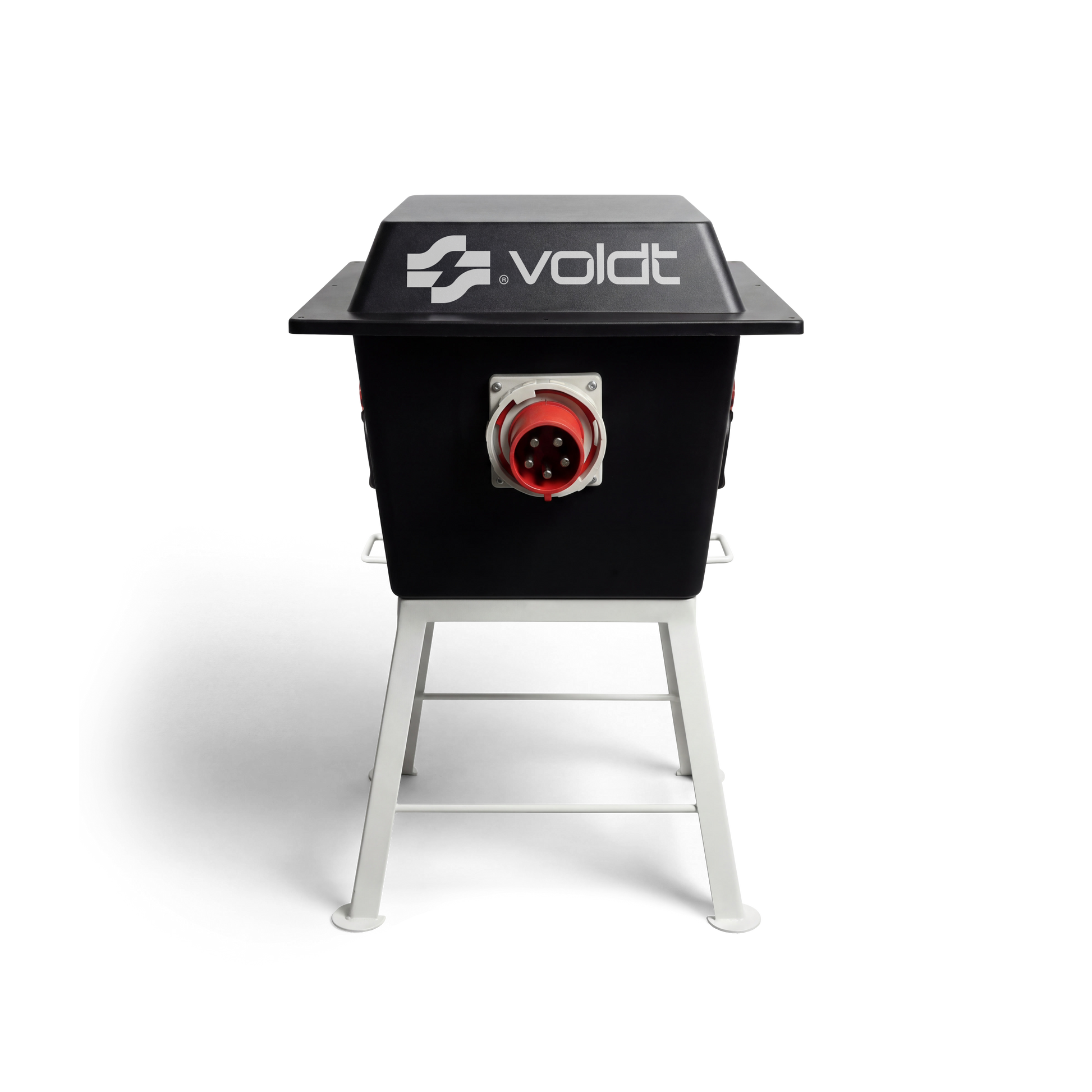

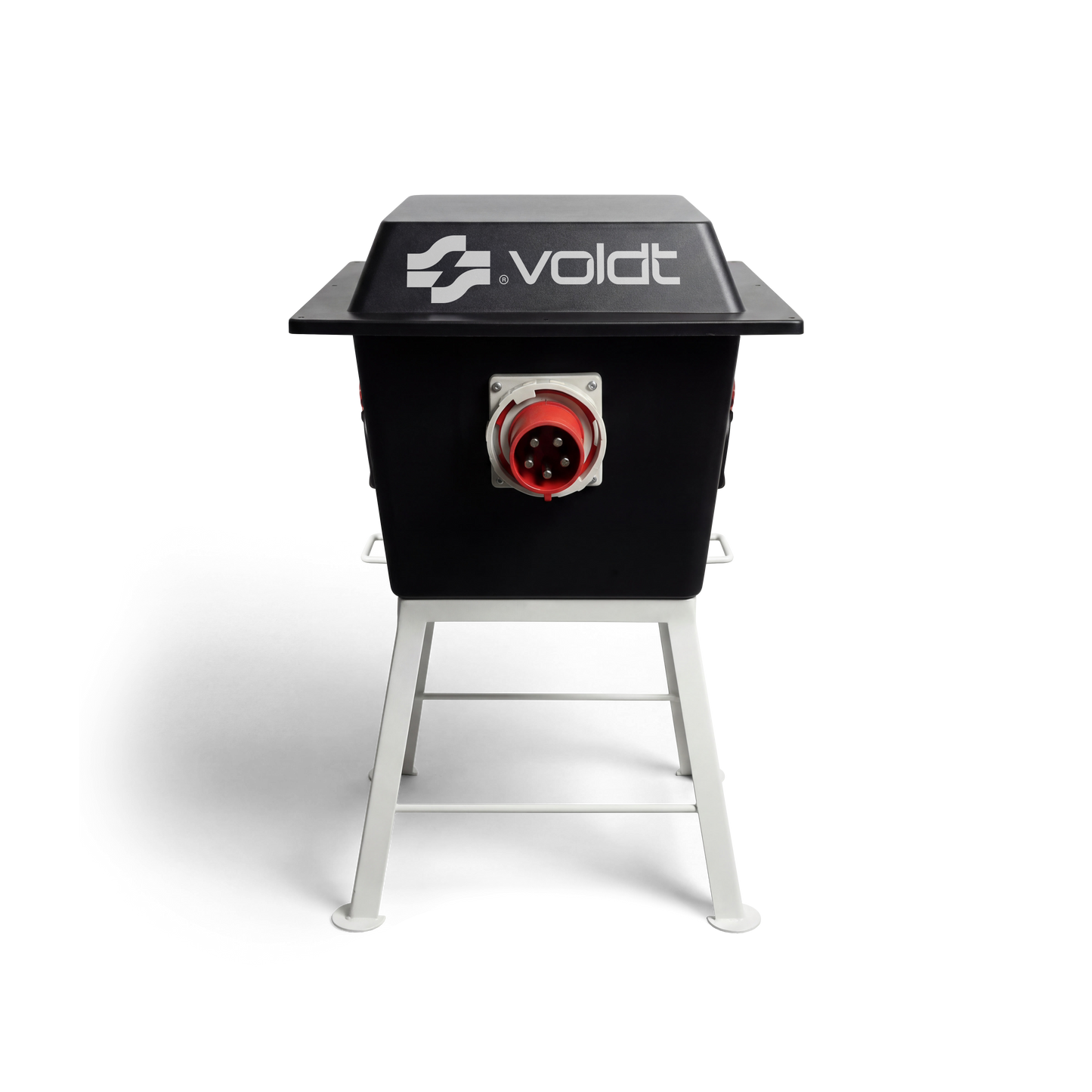

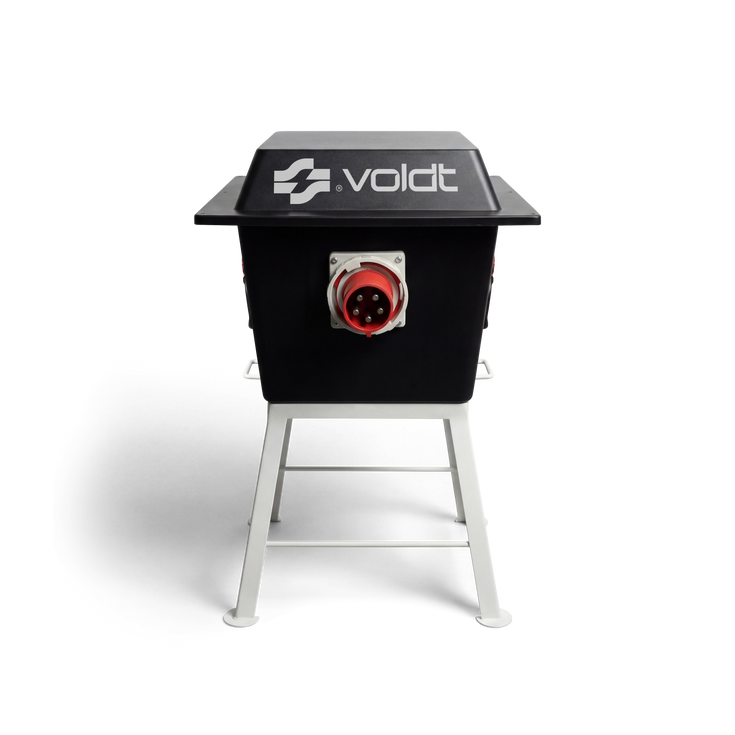

Voldt® Sitecharge | Type 2 | 2x 22kW

Every Voldt® Sitecharge is supplied with a 3-year warranty, 100 days of hassle-free returns and free same-day shipping. Clear coverage, a generous return window and quick dispatch, the basics that keep installation schedules intact.

Behind the unit is European design and manufacturing by Voldt®, informed by automotive engineering practice. That heritage shows up in the specification choices installers actually care about: environmental ratings, cable construction, and how the product is meant to be serviced over its working life.

Day-to-day support is straightforward. Whether a site uses local access or OCPP via 4G or Ethernet, the Voldt® team can assist with setup guidance within the published specifications. Combined with the warranty and returns policy, the Sitecharge is backed for the long run rather than just the unboxing.

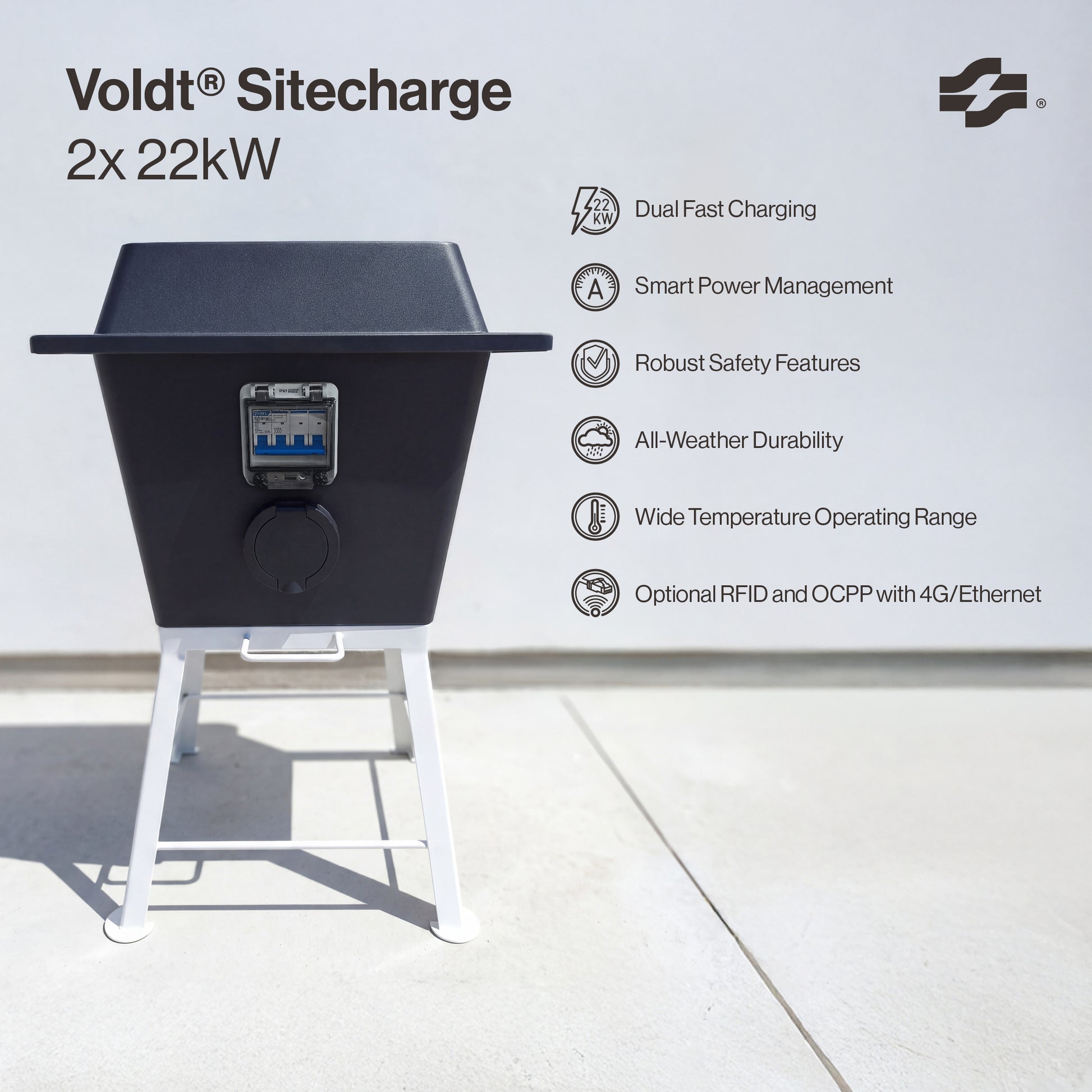

Four access methods are supported: plug-and-charge, app control, optional RFID cards and reservation charging. Sites can run authenticated sessions where billing or access control matters, or stay with simple walk-up use where it doesn't.

For operators, the Voldt® Sitecharge offers OCPP over 4G or Ethernet, giving the back-office connection needed for tariffs, session records, remote oversight and authorisation. Connectivity is optional, so a basic deployment can stay local and straightforward without losing the option to scale up later.

Power sharing is handled internally with CT-based load balancing across single and three-phase metering. In practice that means available capacity is distributed sensibly between the two outlets, which protects the upstream supply during peak demand and improves utilisation when both connectors are in use.

Electrical protection is integrated, not added on. The Sitecharge ships with an RCD Type A plus DC 6mA leakage detection, covering AC residual currents and small DC faults in a single device. The plug itself is rated IP67 within the IP55 enclosure, built as a one-piece housing with no screws or glue, which keeps the connection point sealed and structurally sound through the handling demands of a 63A installation.

Material choice does the rest. Contacts are 100% silvered copper, which avoids the resistance penalties of cheaper alloys, and the conductors use finely stranded copper for flexibility and resilience under tight bend radii. At 63A, these material decisions have a direct bearing on heat build-up at the contact points and mechanical fatigue over thousands of plug cycles. These are the details that determine how a charger holds up in year three rather than week one.

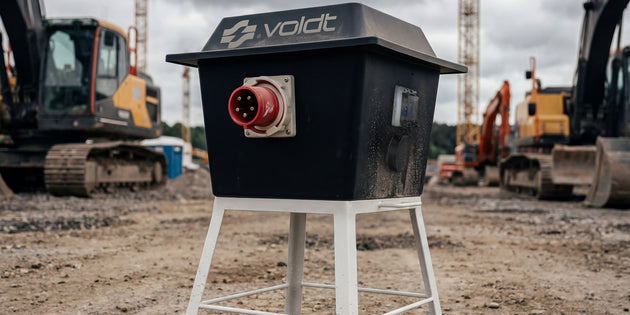

The Voldt® Sitecharge 2×22kW is built for sites with a three-phase supply. It runs on AC 380V ±15% at 50Hz with a 63A rating, which is what delivers the full 22kW per outlet. Single-phase infrastructure will not support this variant, so confirming three-phase availability with the site electrician before installation is the right first step. The 5m output cable is included, while the input cable is selected by the installer to suit local code and the 63A CEE socket on site.

The IP55 enclosure handles indoor or outdoor placement, and the operating window of -30°C to +55°C means it stays in service through Northern winters and Southern summers alike. Installation altitude is rated up to 2,000m, with operating noise below 30dB, so it sits comfortably near offices, residential blocks or workplace car parks.

For sites where a local screen isn't wanted, the display is removable, which simplifies the install and reduces points of wear in vandal-prone or tightly controlled environments.

A portable EV charger is a flexible charging device that allows you to charge your electric vehicle anywhere with access to power. It connects directly to a household socket or industrial outlet, eliminating the need for a fixed wallbox. Compact and easy to transport, it delivers the same safety and reliability as a stationary unit while giving you the freedom to charge at home, at work, or while travelling. Voldt’s range of portable EV chargers is compatible with both Type 1 and Type 2 connectors and includes adjustable amperage control for optimal charging speed.

A portable EV charger works by safely converting AC power from the grid into a controlled current for your vehicle’s battery. The internal control box manages power flow, monitors temperature, and prevents overcurrent or short circuits. Simply plug one end into a power source and the other into your EV’s charging port. With amperage settings from 8A to 32A and output options from 2.8 kW to 22 kW, Voldt® chargers ensure secure, efficient charging on single-phase or three-phase connections.
