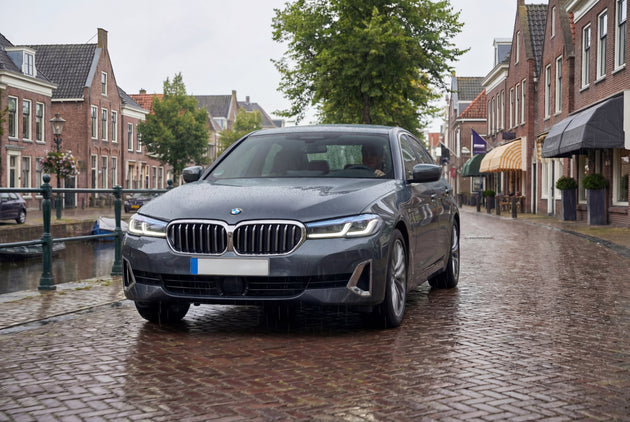

BMW 520E PHEV charging cable

The BMW 520e is the entry point into the G30 5 Series plug-in hybrid range, introduced in 2021 as a more accessible complement to the 530e. It pairs a 2.0-litre four-cylinder petrol engine with an 81 kW electric motor integrated into the eight-speed Steptronic gearbox, for a combined output of 150 kW and a 0 to 100 km/h time of 7.9 seconds. The electric motor draws from a 12 kWh battery housed beneath the rear seat, offering up to 37 miles of WLTP electric range and an electric top speed of 87 mph. Like all G30 5 Series PHEVs, the 520e carries no DC rapid charging capability. The Type 2 charging port sits on the left front flank, consistent across the entire 5 Series PHEV lineup. The onboard AC charger is rated at 3.7 kW single-phase. At that rate a full charge from near-empty takes approximately three and a half hours on a compatible wallbox, making it straightforward to arrive home in the evening with a depleted battery and leave fully charged in the morning without any overnight anxiety. On a standard household socket at around 2.3 kW, the same charge takes just over five hours. The 520e's slightly lower combined output compared to the 530e does not affect charging: the powertrain difference is entirely in the petrol engine specification, while the battery, charger, and electric motor are shared across both models.

Choosing a cable for the BMW 520e

The 520e uses a Type 2 connector, so a Voldt® Type 2 charging cable is the correct choice. The onboard charger tops out at 3.7 kW single-phase, so a 3.7 kW cable matches it precisely. A 7.4 kW cable is worth choosing as an upgrade: it performs identically at 3.7 kW on this car, costs only modestly more, and remains significantly more useful alongside or after any higher-capacity PHEV or fully electric vehicle. An 11 kW or 22 kW cable adds a further step of flexibility and is sensible if you share the cable across multiple vehicles or regularly charge at three-phase public posts.

The left-front port position suits forward-entry bays naturally, aligning the port with most public charge points without requiring any particular manoeuvring. The 12 kWh battery is compact enough to charge fully in well under four hours at 3.7 kW, so cable reach is rarely the deciding factor in day-to-day use. A 5 or 6-metre cable handles virtually every home setup without difficulty. An 8-metre cable adds practical flexibility for public posts set further back or parking spaces where the car ends up with the port side away from the pillar, and is the more sensible default for anyone who charges in varied locations or shares the cable with another vehicle.

Portable charging for the BMW 520e

The Voldt® portable CEE charging cable connects to industrial sockets and is available up to 22 kW via three-phase CEE. For the 520e, a 16A single-phase CEE socket delivers around 3.7 kW, filling the 12 kWh battery in approximately three and a half hours at any campsite, marina, or workshop with a socket to hand. The Schuko portable charger delivers up to 2.3 kW from a standard household socket. At that rate a full charge takes just over five hours from near-empty, making it a practical overnight option rather than a last resort: for a battery this size, a household socket is entirely adequate if you have the time. For the 520e used primarily for commuting, plugging into any available socket at an overnight stop guarantees enough range to cover a full day of typical urban driving the next morning.

Consistent quality from connector to connector

Voldt® charging cables are CE, UKCA and TÜV certified and manufactured according to IATF 16949 automotive quality standards. Single-piece moulded connectors, no glue or screws. IP67-rated for operation between −30°C and +50°C. 100% copper conductors with silver-plated contacts. Tested beyond 10,000 connection cycles. Three-year warranty, 100-day returns, free shipping across Europe.
