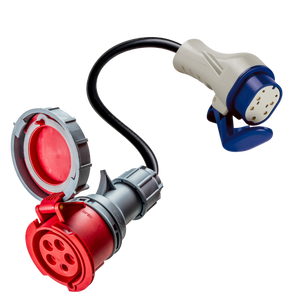

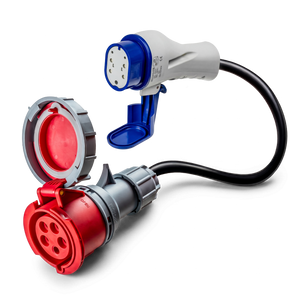

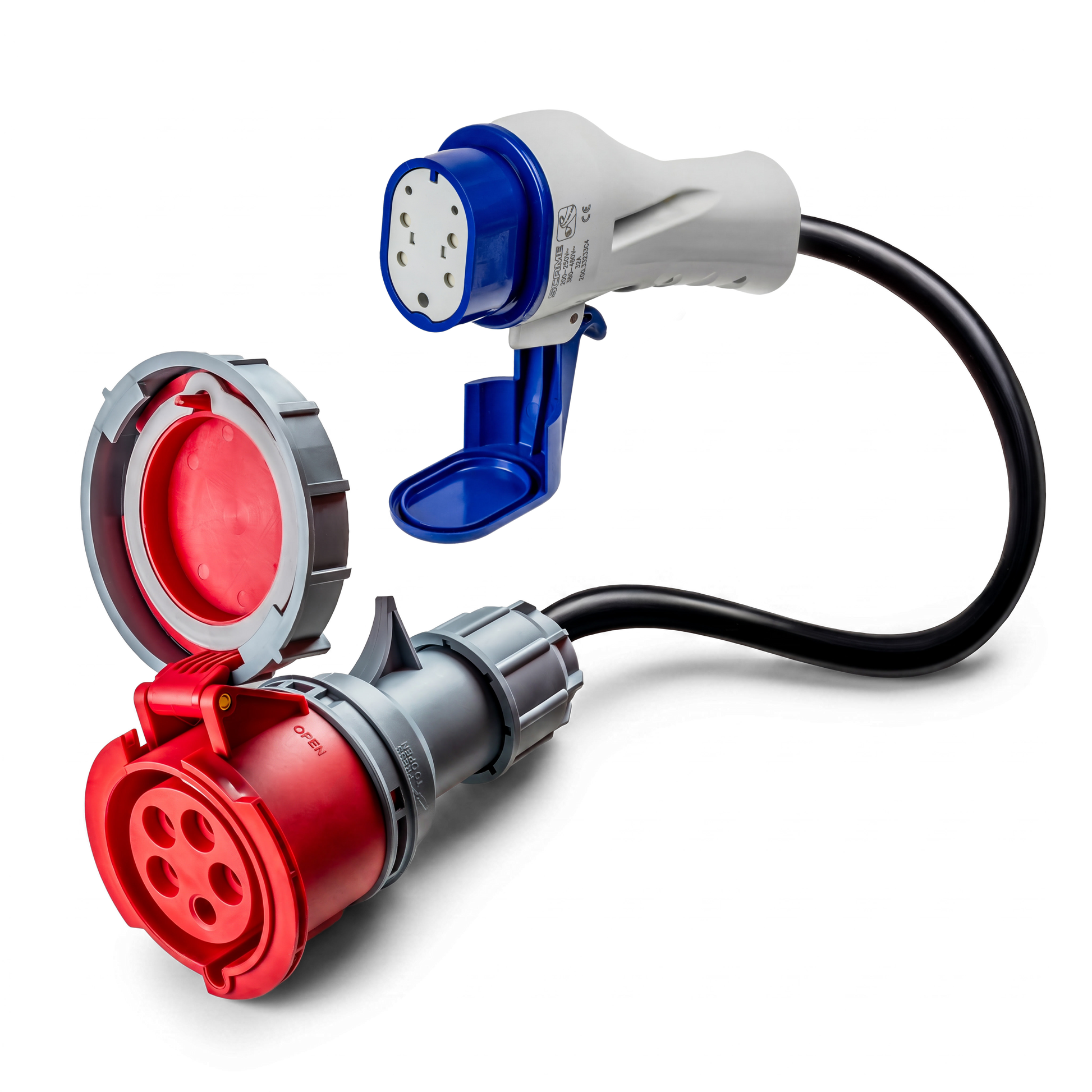

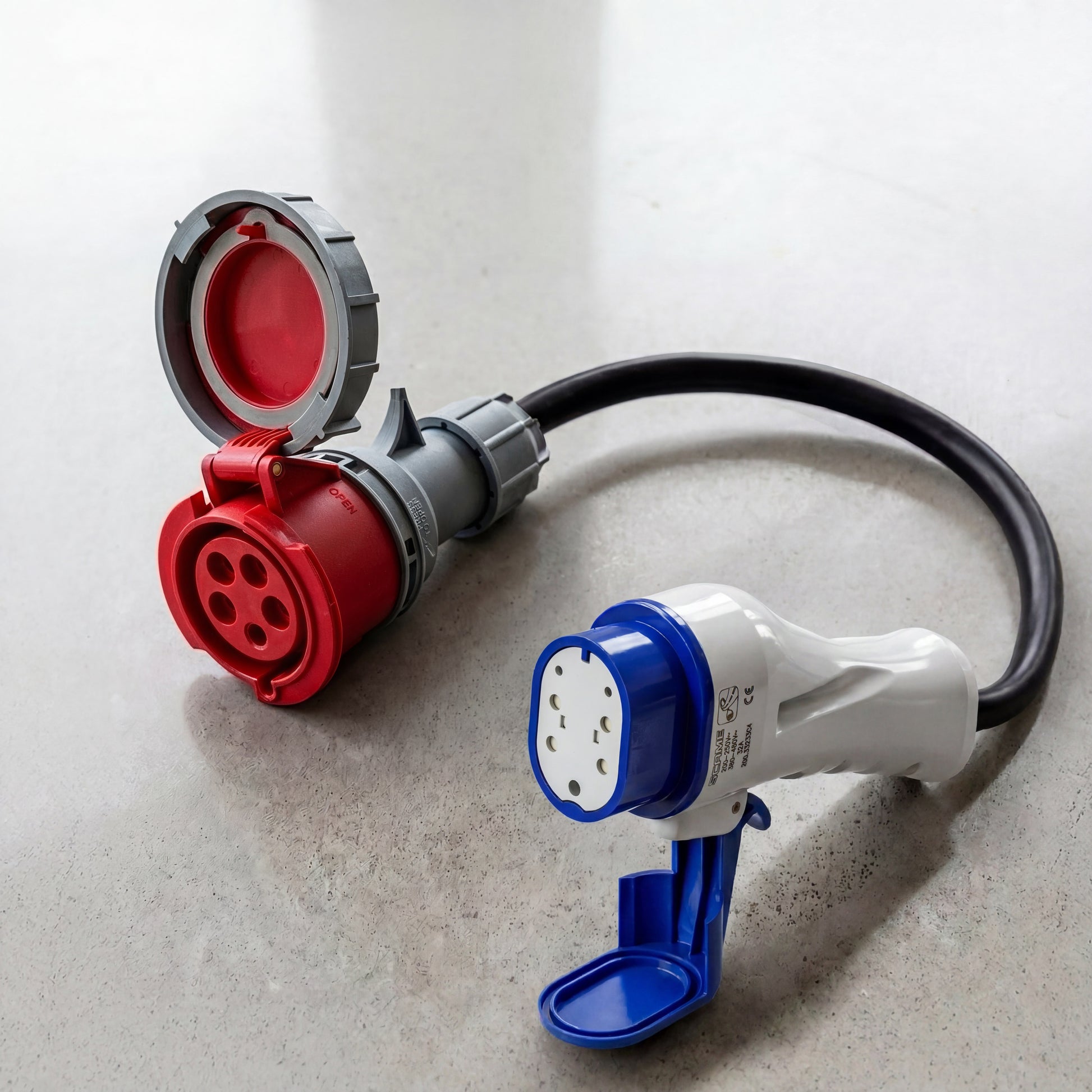

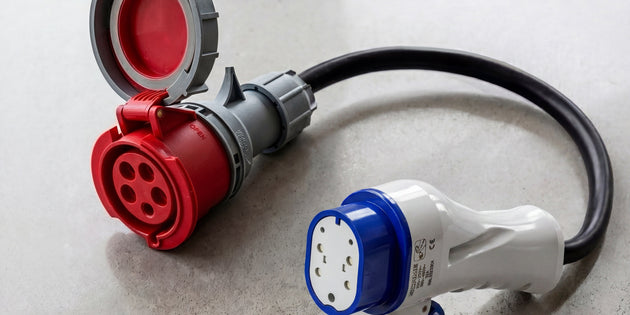

32A 5-pole commando to Type 3 adapter

The Voldt® 32A 5-pin to Type 3 adapter allows you to connect a 32A red 5-pin CEE power source to charging equipment or devices that require a Type 3 connector. It is designed for situations where a three-phase CEE industrial supply is available, but the charging infrastructure or cable is equipped with a Type 3 interface.

What you can connect and when it is useful

This adapter is typically used for charging electric vehicles at locations where Type 3 connectors are required, such as certain private charging points, legacy installations, or restricted-access charging stations. It is commonly applied in commercial buildings, parking facilities, fleet depots, and controlled-access environments where Type 3 sockets are still in use.

Three-phase compatibility

The adapter supports three-phase operation, enabling proper electrical compatibility between a 32A CEE power source and a Type 3 connection. This ensures that the connected charging equipment can operate as intended without unsafe wiring modifications or incompatible plug combinations.

The Voldt® 32A 5-pin to Type 3 adapter supports three-phase operation up to 22 kW at 32 A and is suitable for Mode 2 applications. It is intended for use cases where a Type 3 connection is required, but power is supplied via a 32A red CEE industrial outlet.

Electrical performance

The adapter is rated for 32 A at 400 V, delivering a maximum power output of up to 22 kW. This makes it suitable for high-power three-phase charging and portable power applications that require stable and properly rated electrical connections.

Protection and durability

With an IP67 protection rating, the adapter is resistant to dust and water ingress, making it suitable for indoor and outdoor use. It is tested for more than 10,000 connection cycles, ensuring long-term reliability in professional and high-usage charging environments.

All Voldt® charging cables include a 3-year full warranty and 100 days of hassle-free returns. We stand behind the quality of our European-made products, which are tested to meet the highest standards of safety and durability. Every cable is built to last. If something isn’t right, we’ll make it right: whether that means a quick replacement, repair, or return. It’s our way of ensuring you can charge with complete confidence, every time.
