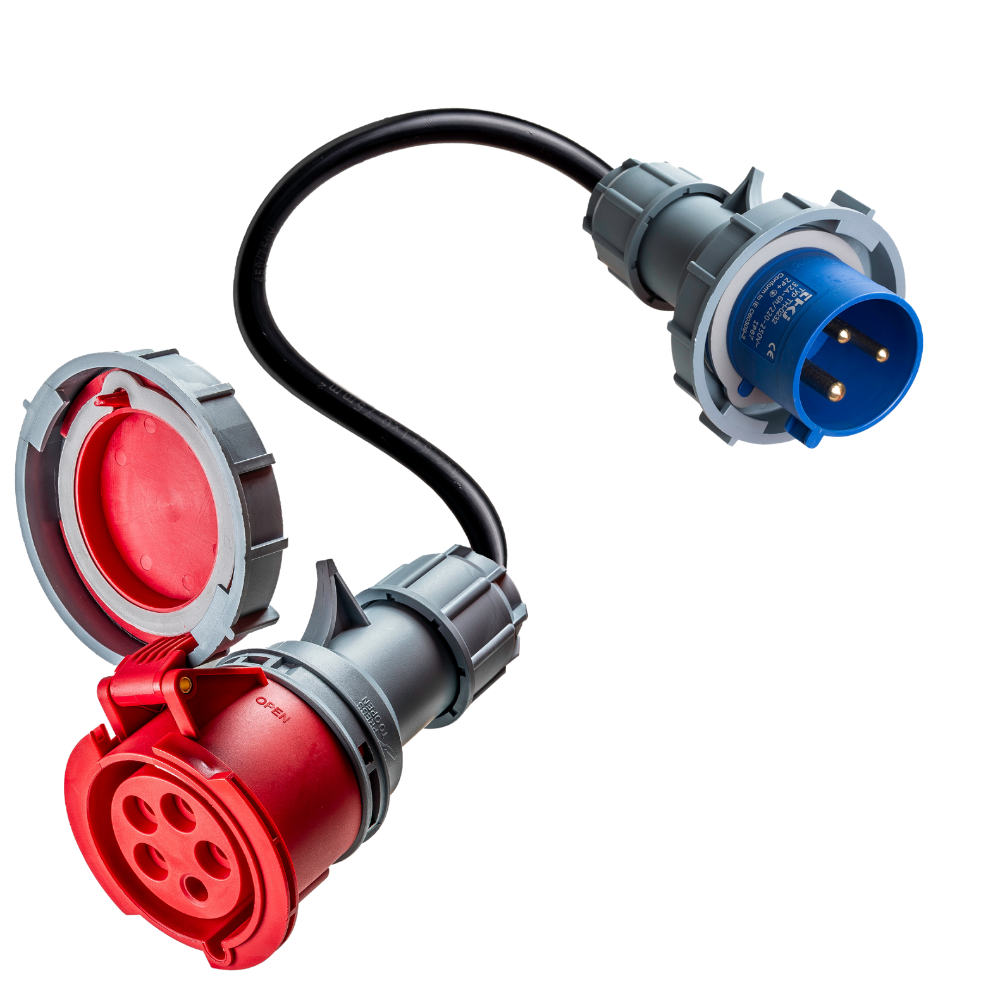

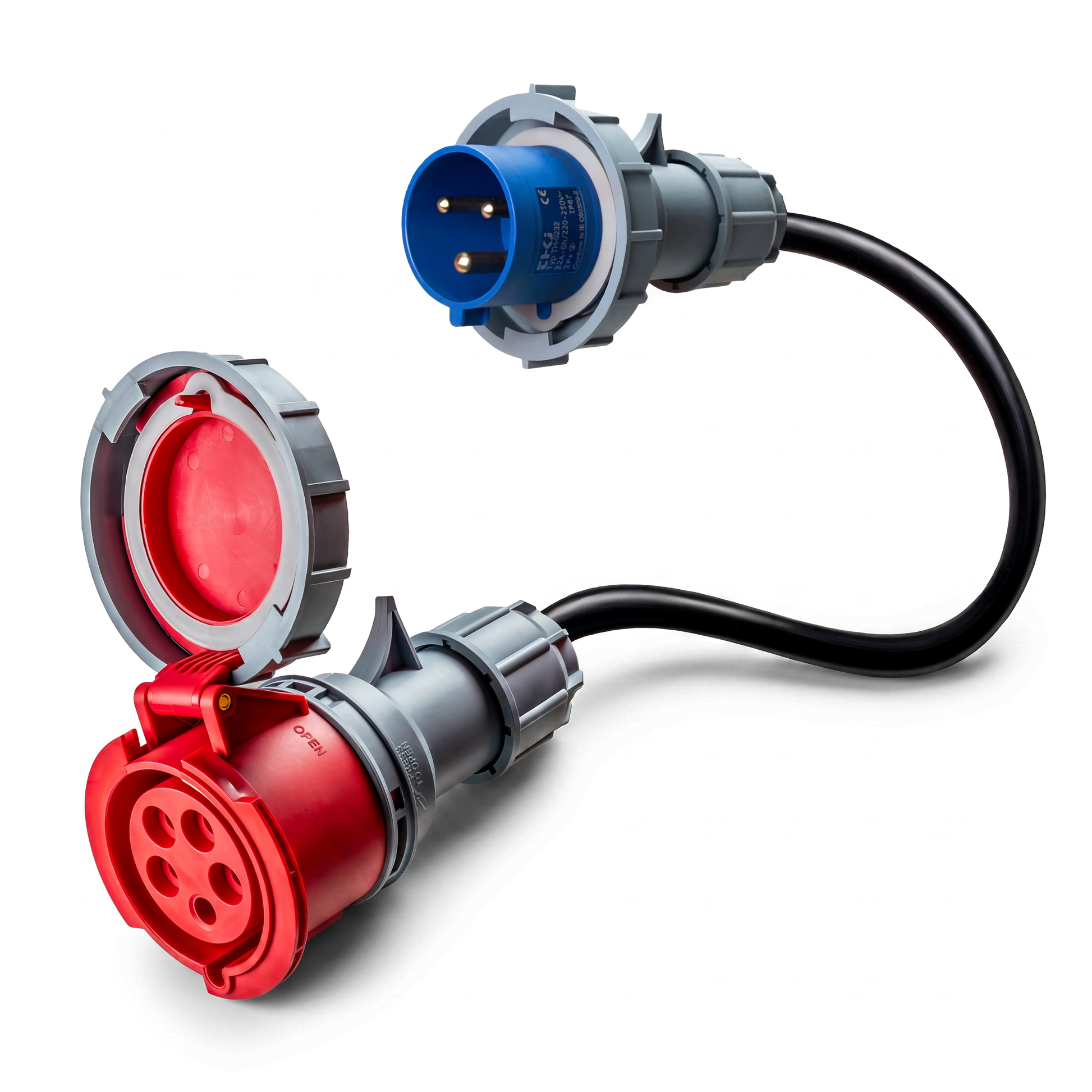

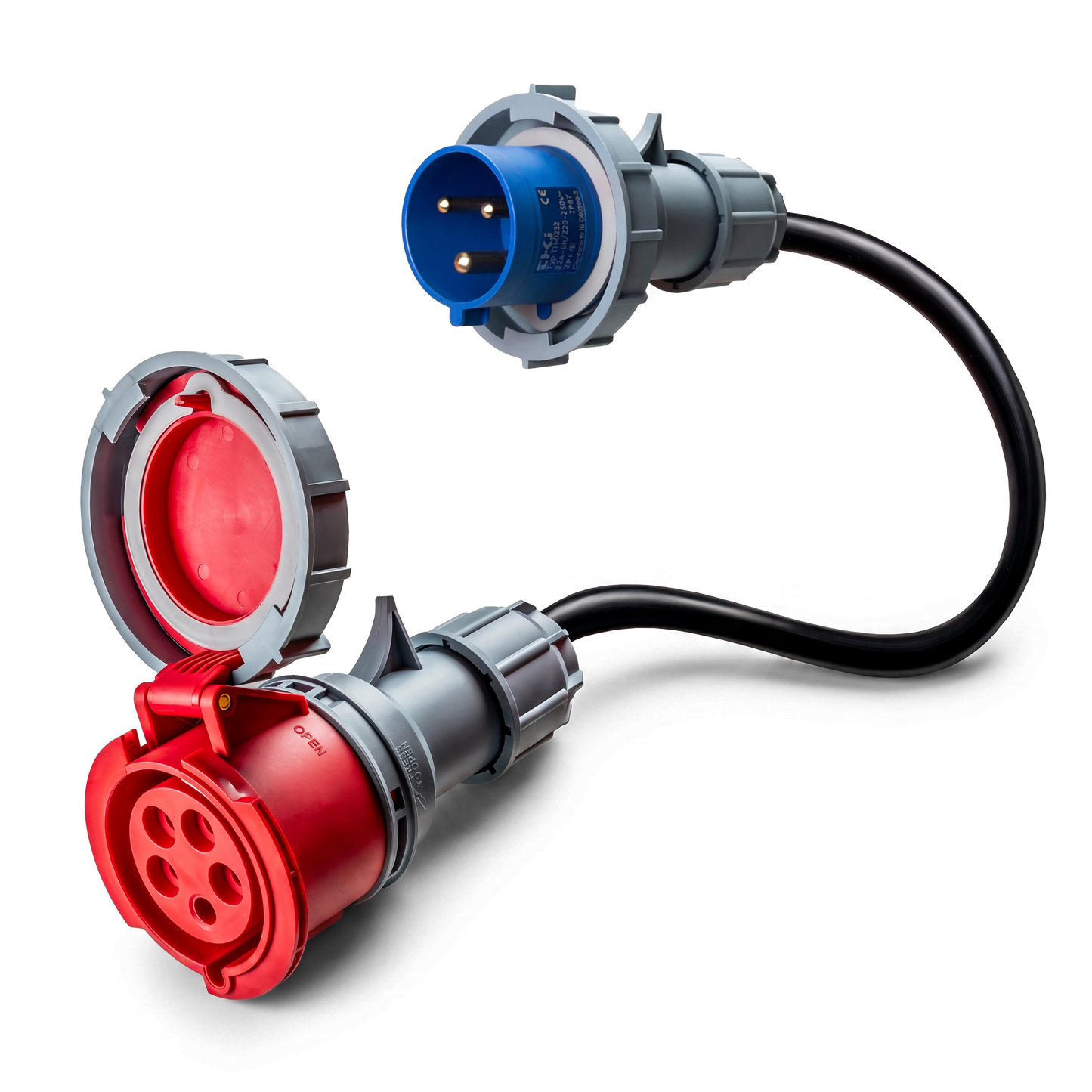

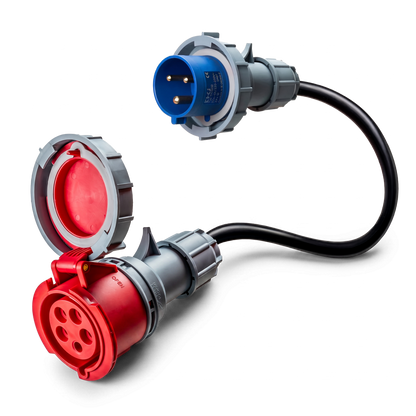

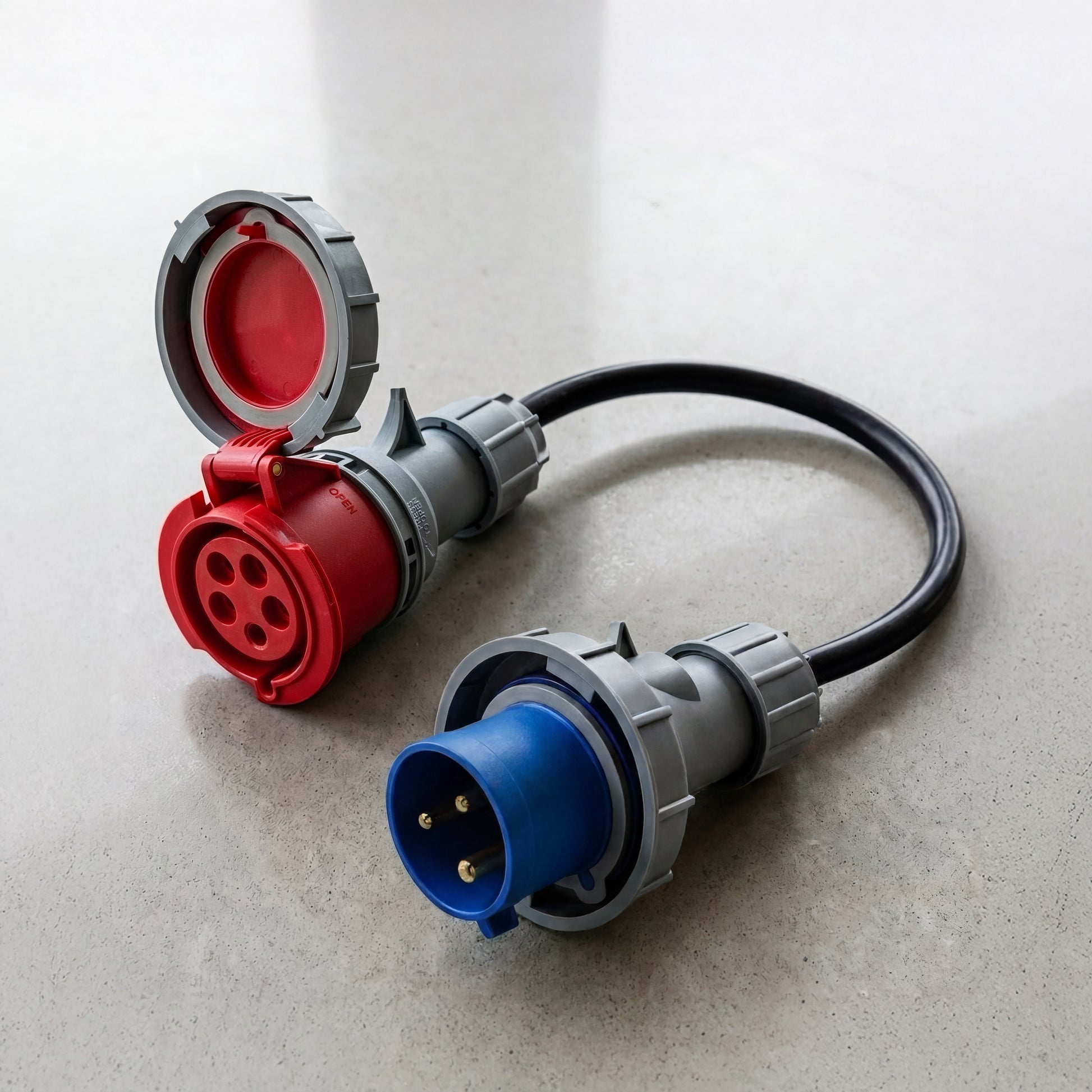

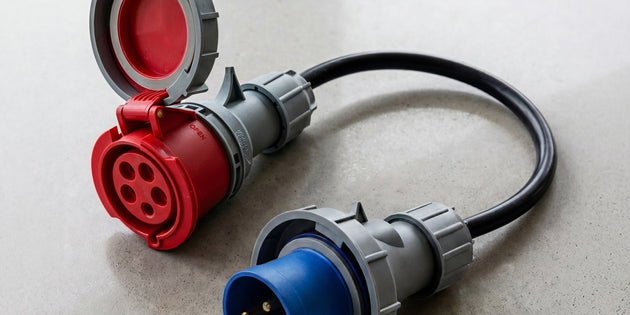

The Voldt® 32A 5-pin CEE to 32A 3-pin CEE adapter allows you to connect a 32A three-phase CEE industrial power source to equipment or charging devices that require a 32A single-phase blue CEE connection. It is designed for situations where a high-capacity red CEE outlet is available, but the connected equipment uses a blue 32A CEE interface.

This adapter is commonly used at industrial sites, workshops, ports, event locations, and temporary installations where red 32A CEE sockets are installed as standard, but single-phase 32A power is required. Typical applications include portable EV chargers, power distribution units, and heavy-duty single-phase equipment that cannot be connected directly to a three-phase outlet.

By converting the red 5-pin CEE connection to a blue 3-pin CEE interface, the adapter ensures mechanical compatibility and correct phase usage. It provides a safe and standardized way to access single-phase power from an existing three-phase industrial supply without modifying the electrical installation.

The Voldt® 32A 5-pin CEE to 16A 5-pin CEE adapter supports three-phase operation up to 11 kW at 16 A and is suitable for Mode 2 applications. It is intended for users who need to power 16A-rated three-phase equipment from a 32A CEE industrial outlet.

Electrically, the adapter operates at 400 V three-phase, delivering a maximum power output of up to 11 kW, depending on the connected device. This makes it suitable for three-phase charging equipment and industrial applications that require stable and correctly rated power delivery without exceeding the limits of 16A systems.

The adapter is built for professional use and features an IP67 protection rating, providing resistance to dust and water ingress. It is tested for more than 10,000 insertion and extraction cycles, operates reliably between -30 °C and +50 °C, and carries CE and UKCA certifications, confirming compliance with relevant safety and quality standards.

The Voldt® 32A 5-pin CEE to Type G adapter for the UK supports single-phase operation up to 2.8 kW at 13 A and is suitable for Mode 2 applications. It is intended for use cases where a Type G socket is required, but power is supplied via a 32A CEE industrial connection.

Electrically, the adapter operates at 230 V single-phase, delivering a maximum output of 2.8 kW, which aligns with the current limits of UK Type G sockets. This ensures that connected equipment operates safely within the specifications of the British electrical standard.

The adapter is built for demanding environments and features an IP67 protection rating, providing resistance against dust and water ingress. It is tested for more than 10,000 insertion and extraction cycles, operates reliably between -30 °C and +50 °C, and carries CE and UKCA certifications, confirming compliance with applicable UK and international safety standards.

The Voldt® 32A 5-pin CEE to 16A 3-pin CEE adapter allows you to connect a 32A three-phase red CEE industrial power outlet to equipment or charging devices that require a 16A single-phase blue CEE connection. It is designed for situations where a higher-capacity three-phase supply is available, but the connected device is rated for 16A single-phase operation.

This adapter is commonly used at industrial sites, workshops, marinas, event locations, and temporary installations where red 32A CEE sockets are installed as standard, but only a 16A blue CEE connection is required. Typical applications include portable EV chargers, single-phase power distribution units, and professional equipment that cannot be connected directly to a three-phase outlet.

By converting the red 5-pin CEE connection to a blue 3-pin CEE interface, the adapter ensures correct phase selection and mechanical compatibility. It provides a safe and standardized way to draw single-phase power from an existing three-phase industrial supply without modifying cables or electrical installations.

The Voldt® 32A 5-pin CEE to 16A 3-pin CEE adapter supports single-phase operation up to 3.7 kW at 16 A and is suitable for Mode 2 applications. It is intended for users who need to supply 16A-rated single-phase equipment from a 32A CEE industrial outlet.

Electrically, the adapter operates at 230 V single-phase, delivering a maximum power output of up to 3.7 kW. This makes it suitable for controlled single-phase charging and professional equipment while ensuring that the current remains within the limits of a 16A blue CEE connection.

The adapter is designed for professional use and features an IP67 protection rating, providing resistance against dust and water ingress. It is tested for more than 10,000 insertion and extraction cycles, operates reliably between -30 °C and +50 °C, and carries CE and UKCA certifications, confirming compliance with applicable safety and quality standards.

The Voldt® 32A 5-pin CEE to 32A 3-pin CEE adapter allows you to connect a 32A three-phase CEE industrial power source to equipment or charging devices that require a 32A single-phase blue CEE connection. It is designed for situations where a high-capacity red CEE outlet is available, but the connected equipment uses a blue 32A CEE interface.

This adapter is commonly used at industrial sites, workshops, ports, event locations, and temporary installations where red 32A CEE sockets are installed as standard, but single-phase 32A power is required. Typical applications include portable EV chargers, power distribution units, and heavy-duty single-phase equipment that cannot be connected directly to a three-phase outlet.

By converting the red 5-pin CEE connection to a blue 3-pin CEE interface, the adapter ensures mechanical compatibility and correct phase usage. It provides a safe and standardized way to access single-phase power from an existing three-phase industrial supply without modifying the electrical installation.

The Voldt® 32A 5-pin CEE to 16A 5-pin CEE adapter supports three-phase operation up to 11 kW at 16 A and is suitable for Mode 2 applications. It is intended for users who need to power 16A-rated three-phase equipment from a 32A CEE industrial outlet.

Electrically, the adapter operates at 400 V three-phase, delivering a maximum power output of up to 11 kW, depending on the connected device. This makes it suitable for three-phase charging equipment and industrial applications that require stable and correctly rated power delivery without exceeding the limits of 16A systems.

The adapter is built for professional use and features an IP67 protection rating, providing resistance to dust and water ingress. It is tested for more than 10,000 insertion and extraction cycles, operates reliably between -30 °C and +50 °C, and carries CE and UKCA certifications, confirming compliance with relevant safety and quality standards.

The Voldt® 32A 5-pin CEE to Type G adapter for the UK supports single-phase operation up to 2.8 kW at 13 A and is suitable for Mode 2 applications. It is intended for use cases where a Type G socket is required, but power is supplied via a 32A CEE industrial connection.

Electrically, the adapter operates at 230 V single-phase, delivering a maximum output of 2.8 kW, which aligns with the current limits of UK Type G sockets. This ensures that connected equipment operates safely within the specifications of the British electrical standard.

The adapter is built for demanding environments and features an IP67 protection rating, providing resistance against dust and water ingress. It is tested for more than 10,000 insertion and extraction cycles, operates reliably between -30 °C and +50 °C, and carries CE and UKCA certifications, confirming compliance with applicable UK and international safety standards.

The Voldt® 32A 5-pin CEE to 16A 3-pin CEE adapter allows you to connect a 32A three-phase red CEE industrial power outlet to equipment or charging devices that require a 16A single-phase blue CEE connection. It is designed for situations where a higher-capacity three-phase supply is available, but the connected device is rated for 16A single-phase operation.

This adapter is commonly used at industrial sites, workshops, marinas, event locations, and temporary installations where red 32A CEE sockets are installed as standard, but only a 16A blue CEE connection is required. Typical applications include portable EV chargers, single-phase power distribution units, and professional equipment that cannot be connected directly to a three-phase outlet.

By converting the red 5-pin CEE connection to a blue 3-pin CEE interface, the adapter ensures correct phase selection and mechanical compatibility. It provides a safe and standardized way to draw single-phase power from an existing three-phase industrial supply without modifying cables or electrical installations.

The Voldt® 32A 5-pin CEE to 16A 3-pin CEE adapter supports single-phase operation up to 3.7 kW at 16 A and is suitable for Mode 2 applications. It is intended for users who need to supply 16A-rated single-phase equipment from a 32A CEE industrial outlet.

Electrically, the adapter operates at 230 V single-phase, delivering a maximum power output of up to 3.7 kW. This makes it suitable for controlled single-phase charging and professional equipment while ensuring that the current remains within the limits of a 16A blue CEE connection.

The adapter is designed for professional use and features an IP67 protection rating, providing resistance against dust and water ingress. It is tested for more than 10,000 insertion and extraction cycles, operates reliably between -30 °C and +50 °C, and carries CE and UKCA certifications, confirming compliance with applicable safety and quality standards.
