Hyundai Ioniq 5 charging cable

The Hyundai Ioniq 5 is a purpose-built electric crossover available in two battery configurations: a 63 kWh Standard Range and an 84 kWh Long Range, each offered in rear-wheel and all-wheel drive variants. The Ioniq 5 runs on Hyundai's 800V electrical architecture, which sets it apart from most rivals: it accepts both 400V and 800V DC fast chargers natively, without the voltage conversion losses that affect other EVs on high-power networks. AC charging uses a Type 2 connector via a CCS inlet, with an 11 kW three-phase onboard charger on all variants. On a 7 kW home wallbox, a full charge on the 84 kWh battery takes around twelve hours. On an 11 kW three-phase supply, that drops to around eight and a half hours. For rapid top-ups, the Ioniq 5 accepts DC fast charging at up to 350 kW via the CCS port, covering 10 to 80 per cent in around 18 minutes on a compatible ultra-rapid charger. The charge port sits on the right rear flank, in the same position as a conventional fuel filler.

Which charging cable fits the Hyundai Ioniq 5

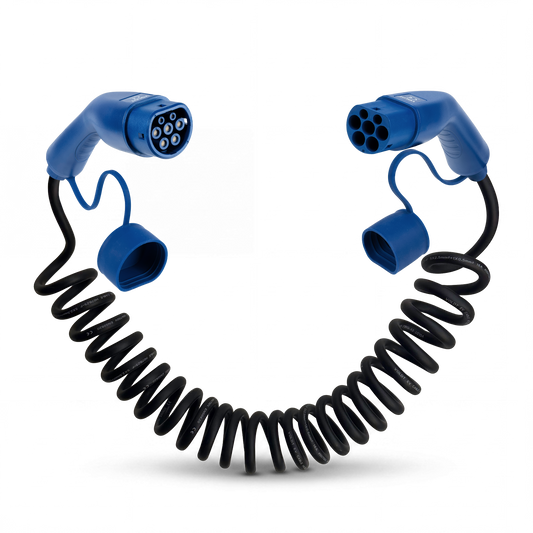

The correct cable is a Voldt® Type 2 charging cable. The 11 kW onboard charger draws the full output of a standard three-phase wallbox, making cable length the main practical consideration. A 22 kW cable works equally well at 11 kW and is worth having if you plan to use it with a higher-capacity vehicle in the future.

The right-rear port mirrors the position of a conventional fuel filler, so reversing into a bay puts the port closest to the post. For most home setups a 6-metre cable is comfortable. An 8-metre cable is the everyday standard for mixed home and public use. A 10-metre cable reaches charge posts set further back from the parking bay. A 15-metre cable handles long driveways, underground car parks, and hotel charging points where the socket is not directly beside the space.

Portable charging on the road and away from home

The Voldt® portable CEE charging cable is available up to 22 kW via three-phase CEE. For the Ioniq 5, the onboard charger accepts up to 11 kW, so output is matched automatically. Most CEE sockets on campsites and marinas run at 16A three-phase, delivering exactly 11 kW. At that rate the 84 kWh battery charges fully in around eight and a half hours, and the 63 kWh in around six, both well within an overnight window at any site with a three-phase socket. The Schuko portable charger delivers up to 3.7 kW via a standard domestic socket, useful for topping up overnight at holiday accommodation or when visiting friends.

Guaranteed European quality

Voldt® cables are CE, UKCA and TÜV certified and built to IATF 16949, the quality standard for production-line automotive components. Single-piece moulded connectors, no glue or screws. IP67-rated from −30°C to +50°C. 100% copper conductors with silver-plated contacts. Tested to more than 10,000 connection cycles. Three-year warranty, 100-day returns, free shipping across Europe.
