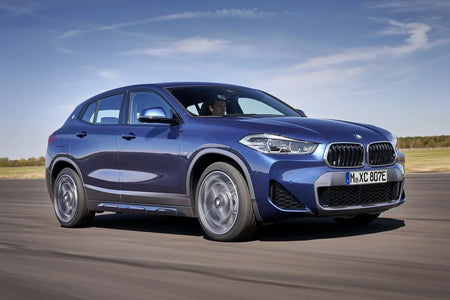

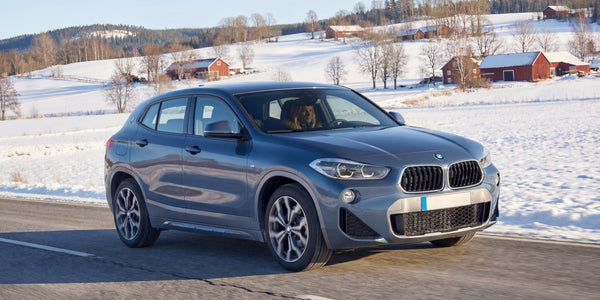

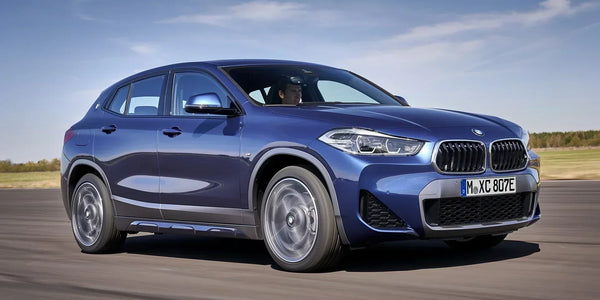

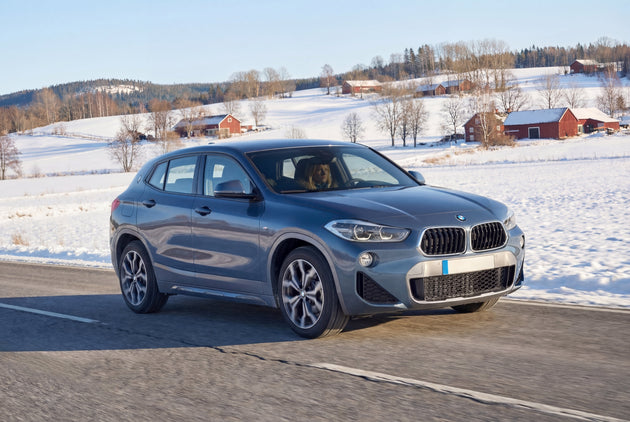

BMW X2 xDrive25e PHEV charging cable

The BMW X2 xDrive25e was the first compact Sports Activity Coupé with a plug-in hybrid drivetrain, produced from 2020 until the first-generation X2 gave way to the second-generation model in 2024. A 1.5-litre three-cylinder petrol engine drives the front axle while a 70 kW electric motor powers the rear, creating hybrid all-wheel drive without a mechanical link between the two. Combined system output is 162 kW with 385 Nm of torque, reaching 62 mph in 6.8 seconds. The electric motor draws from a 10 kWh battery (approximately 8.8 kWh usable), delivering up to 35 miles of electric-only range in the WLTP cycle at speeds up to 84 mph. The onboard AC charger is rated at 3.7 kW single-phase (16A), filling the battery fully in approximately three hours from a compatible wallbox. There is no DC rapid charging capability. The Type 2 charging port sits on the left front flank.

The right cable for the X2 xDrive25e

The X2 xDrive25e uses a Type 2 connector for AC charging, and a Voldt® 11 kW Type 2 charging cable is the correct match. The onboard charger draws 16A on a single phase, and an 11 kW cable supports exactly that amperage, delivering the car's full 3.7 kW from any wallbox or public post. There is no speed advantage from a higher-rated cable on this specific car, but a 22 kW cable works identically at 3.7 kW and is worth considering if you share the cable with a more capable vehicle or plan to keep it for a future car with a faster charger.

The charging port sits on the left front flank, so driving straight into a bay places the port closest to the charge point in most public layouts. With a battery of just 8.8 kWh, charging is quick enough that cable reach is rarely a concern, but getting the length right from the start still removes a small recurring inconvenience. A 6-metre cable covers most home wallbox setups comfortably. An 8-metre cable is the most practical all-round choice, handling most public post positions and home configurations without needing to reposition the car. A 10-metre cable adds reach at posts set further back from the bay, and a 15-metre cable handles hotel car parks, longer driveways, and wider commercial layouts without restriction.

Portable charging on the go

The Voldt® blue CEE portable charger plugs into the single-phase 16A sockets found at campsites, marinas, and workshops across Europe, delivering 3.7 kW: the X2 xDrive25e's full onboard charging rate. At that speed the 8.8 kWh battery fills from near-empty in approximately three to three and a half hours, making a campsite overnight stop or a long lunch more than enough time for a complete charge. For a car with this battery size, the blue CEE portable is the most relevant industrial-socket option: a three-phase red CEE socket would deliver the same 3.7 kW (the car draws only one phase at 16A regardless of what the socket provides), so the single-phase blue CEE is the practical and honest choice.

Where only a standard domestic socket is available, the Voldt® three-pin portable charger draws up to 2.8 kW from a UK household socket, within the limits of what your wiring and installation can safely sustain. A built-in thermal sensor monitors the connection temperature continuously and adjusts the charging current automatically, so the charger adapts to the condition of the socket rather than assuming a fixed load. At that rate, a full charge from near-empty takes approximately three and a half to four hours. For a battery this small, the three-pin charger is not a fallback: it is a practical daily charging solution. Plugging in each evening guarantees a full battery each morning without ever needing a dedicated wallbox.

Quality that comes standard

Every Voldt® charging cable is CE, UKCA and TÜV certified, built to automotive quality standards with single-piece moulded connectors, no glue, no screws. The housing carries an IP67 rating for full operation between −30 °C and +50 °C. Inside, 100% copper conductors with silver-plated contacts deliver minimal resistance and consistent performance across more than 10,000 tested connection cycles. Cables are available in 6, 8, 10, and 15-metre lengths, all backed by a three-year warranty, a 100-day return window, and free shipping across Europe.
