BMW XM Charging cable

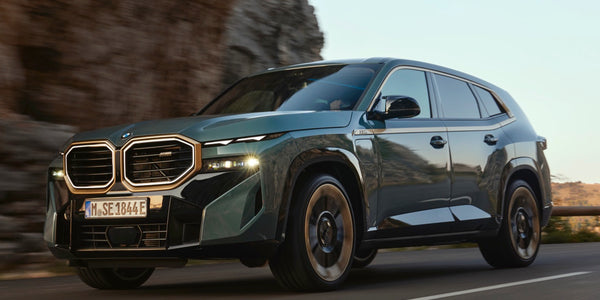

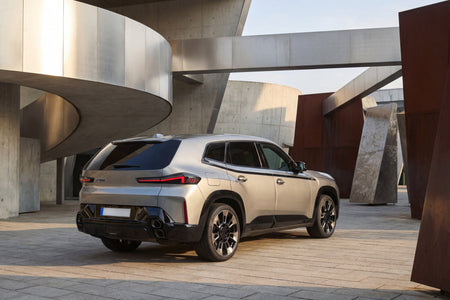

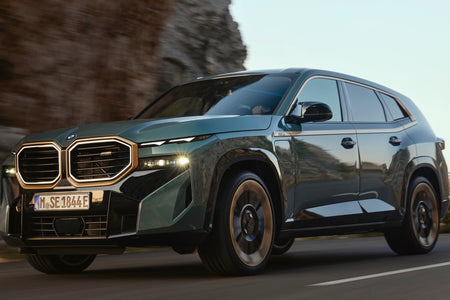

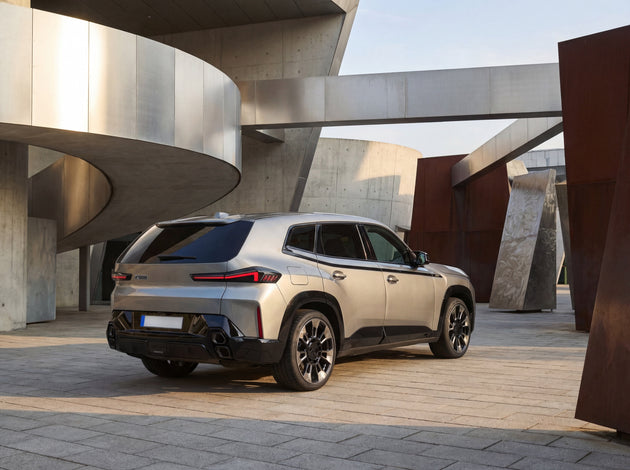

The BMW XM is the first standalone M car since the M1, designed from the outset as an M vehicle rather than an M-tuned variant of an existing model. The powertrain pairs a 4.4-litre V8 with M TwinPower Turbo technology with a 145 kW electric motor integrated into the eight-speed M Steptronic gearbox. The base XM produces 480 kW combined with 800 Nm of torque; the XM Label and limited-edition Label Red reach 550 kW with 1,000 Nm. An entry-level XM 50e, built around a 3.0-litre inline-six, offers 350 kW. All variants share the same 25.7 kWh usable battery, delivering up to 55 miles of electric-only range in the WLTP cycle at speeds up to 87 mph.

Charging capability changed at the 2026 model year. Pre-2026 XM models carry a 7.4 kW single-phase onboard AC charger (32A), filling the battery in approximately four and a quarter hours from a compatible wallbox. The 2026 XM Label upgraded to an 11 kW three-phase charger, cutting that to around two and a half hours. There is no DC rapid charging on any variant, consistent with BMW's PHEV architecture. The Type 2 charging port sits on the left front flank across the range.

Which cable the BMW XM needs

Every XM variant uses a Type 2 connector for AC charging, and a Voldt® 22 kW Type 2 charging cable is the right choice regardless of which generation you have. For pre-2026 models with the 7.4 kW single-phase charger, this is not optional: the car draws up to 32A on a single phase, and only a 22 kW cable supports that amperage. An 11 kW cable, rated at 16A per phase, would limit the car to 3.7 kW, halving the charge rate and roughly doubling the time to a full battery. For 2026 XM Label models with the 11 kW three-phase charger, the 22 kW cable works identically at 11 kW on any three-phase supply, and still delivers 7.4 kW on a UK single-phase wallbox at 32A, where an 11 kW cable would again cap at 3.7 kW. One cable, correct for every XM on the road.

The charging port sits on the left front flank, so driving straight into a bay places the port closest to the charge point in most public layouts: convenient for a vehicle of this size. With a battery of 25.7 kWh, charging is quick enough that cable reach matters less than on a full EV, but getting the length right from the start still removes a small recurring inconvenience. A 6-metre cable covers most home wallbox setups. An 8-metre cable is the most practical all-round choice, handling most public post positions and home configurations without needing to reposition the car. A 10-metre cable adds reach at posts set further back from the bay, and a 15-metre cable handles hotel car parks, longer driveways, and wider commercial layouts without restriction.

Charging away from home

The Voldt® 22 kW portable charger connects to a 32A three-phase red commando socket and adapts to both XM generations. Pre-2026 models draw one phase at 32A, receiving 7.4 kW and filling the battery in approximately four hours. The 2026 XM Label draws all three phases at up to 16A each, receiving the full 11 kW and completing the same charge in around two and a half hours. The Voldt® blue CEE portable charger plugs into the single-phase 16A sockets found at campsites and marinas across Europe, delivering 3.7 kW: at that rate the battery fills in approximately seven to eight hours, comfortably within an overnight stop.

Where only a standard domestic socket is available, the Voldt® three-pin portable charger draws up to 2.8 kW from a UK household socket, within the limits of what your wiring and installation can safely sustain. A built-in thermal sensor monitors the connection temperature continuously and adjusts the charging current automatically, so the charger adapts to the condition of the socket rather than assuming a fixed load. At that rate, a full charge takes approximately ten hours, well within an overnight window. For a car designed to cover urban driving on electric power alone, having the battery topped up each morning from nothing more than a household socket is a practical daily arrangement rather than a compromise.

Engineered to last

Every Voldt® charging cable is CE, UKCA and TÜV certified, built to automotive quality standards with single-piece moulded connectors, no glue, no screws. The housing carries an IP67 rating for full operation between −30 °C and +50 °C. Inside, 100% copper conductors with silver-plated contacts deliver minimal resistance and consistent performance across more than 10,000 tested connection cycles. Cables are available in 6, 8, 10, and 15-metre lengths, all backed by a three-year warranty, a 100-day return window, and free shipping across Europe.
